Thank you for the amazing Audio Video Kino 2025

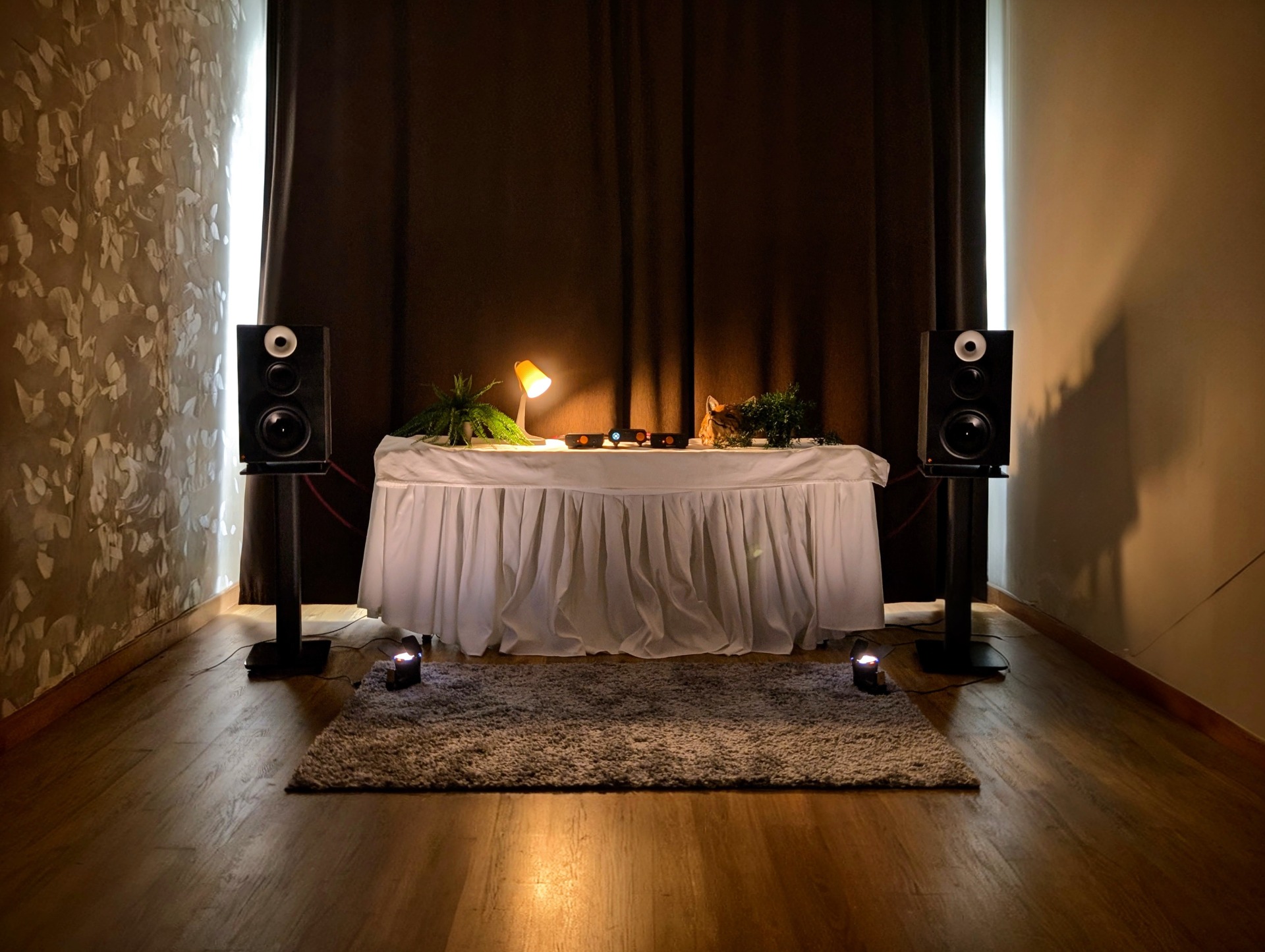

We debuted the initial bookshelf prototype of the Luminaer at Audio Video Kino 2025 in Bratislava. Thank you to everyone who visited, and especially to those who shared their appreciation for the sound.
Building on that success, we decided to evolve the design into a compact floorstanding tower. This new form factor delivers better performance and greater scale while keeping the footprint much smaller. We hope we proved that a reference system doesn't have to be massive or expensive, and we are excited to bring this finalized, full-range evolution to your home
PRE-ORDER
The expected release is Q1 2026. Pre-orders will go into production right after the official release.
An elegant Hi-Fi speaker for your home system
The brand new, four-way Hi-Fi speaker - Luminaer - is the first RaynAudio speaker. With four drivers, we aim to give you full, clean and deep bass combined with realistic sounding, neutral, wide mids and treble. The speaker illuminates the true nature of sound, it brings clarity and brilliance to the listening experience.
The full four-way system inside a cabinet that fits any living room, any listening room, any bedroom and fills it without the need to purchase a dedicated subwoofer.
A Hi-Fi dream - coming soon
THE SOUND

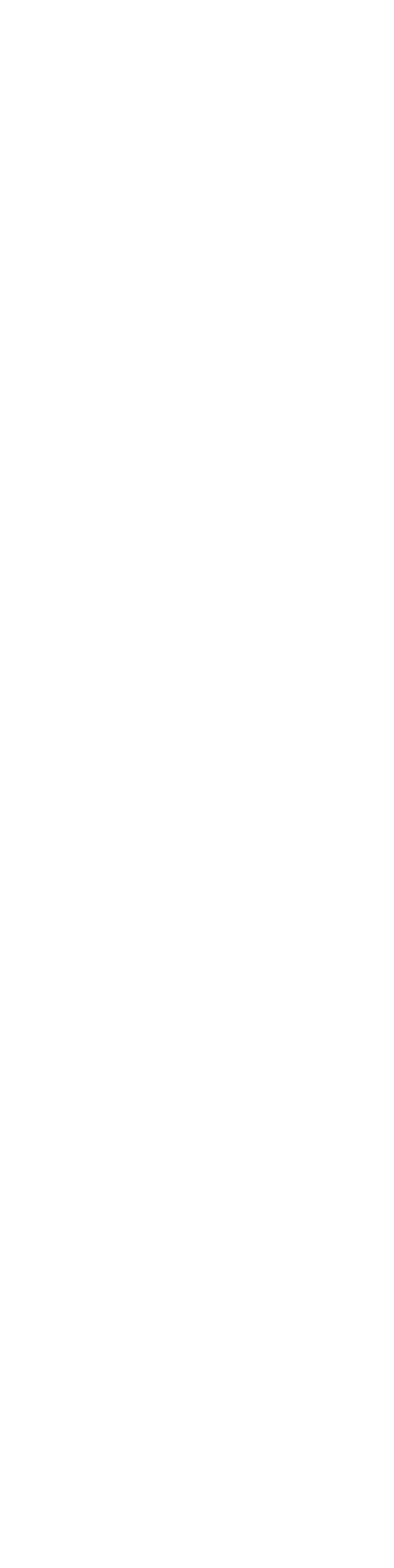

A DREAM IN A COMPACT TOWER
Experience a soundstage that extends far beyond the room, combined with deep bass that requires no extra subwoofer.
THE EYE
MASSIVE SOUNDSTAGE

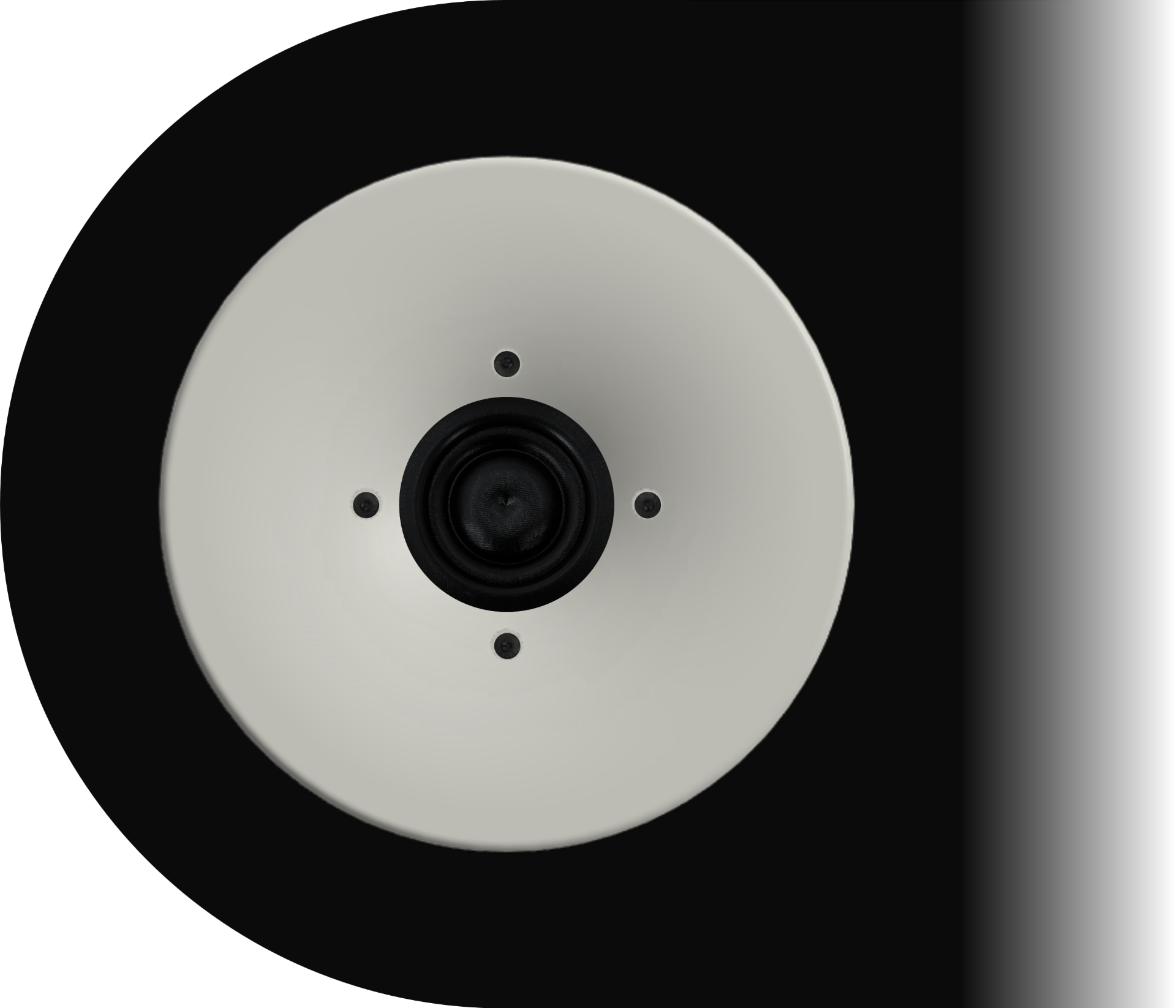

The custom engineered Eye tweeter waveguide does more than just look striking. It perfectly matches the dispersion of the tweeter to the midrange driver. This eliminates unwanted effects, creating a massive soundstage that sounds consistent whether you are sitting on the sofa or moving around the room.
TREBLE SMOOTHING
We engineered our Eye waveguide to not just improve the soundstage, but also clean up all unwanted peaks in the high frequencies allowing you to listen to the Luminaer all day long without fatigue.
TRUE FULL-RANGE SYSTEM
FOUR-WAY SEPARATION
Luminaer divides the audio spectrum among four specialized drivers, each doing exactly one job perfectly. The 8" subwoofer is the foundation for depth, a 7" woofer delivers impact, a 4" midrange renders vocals with perfect clarity, and a 3/4" ring radiator tweeter adds the air and sparkle. This separation ensures that the power of a drum kick never distorts a single whisper of a human voice.
DOWN-FIRING SUBWOOFER
With a dedicated 8" subwoofer driver and a bass reflex port, the tower reaches down to the lowest frequencies. You get the proper impact of cinematic bass and the texture of a double bass, all from a slim, elegant tower.
MIDRANGE PURITY
PERFECT CLARITY
By physically separating the midrange driver and tweeter in their own cabinet from the bass cabinet, we have eliminated any kind of resonance. Vocals float in empty space, completely detached from the box, revealing the breath and texture of the artist with proper realism.
THE DRIVERS
PREMIUM DRIVER CHOICE
Luminaer ensures no single driver is ever stressed, resulting in effortless dynamics and crystal-clear detail
8" SUBWOOFER
Below 95 Hz, the 8" high-excursion subwoofer takes over to fill the room with deep bass. By facing the floor and focusing solely on the deepest octaves, it creates an omnidirectional foundation of bass weight that you feel in your chest, anchoring the music without ever muddying the midrange.
4" MIDRANGE
The critical vocal range is handled exclusively by a precision 4" aluminum cone driver. Thanks to a cut at 450 Hz, it never has to reproduce muddy bass frequencies, and because it stops at 3900 Hz, it never beams. It does one thing perfectly - reproducing the human voice and instruments with perfect, organic realism.
7" WOOFER
Where the energy lives. The 7" forward-firing Dayton Audio woofer is tuned specifically for the 95 Hz - 450 Hz range. The driver delivers the physical feel of a snare drum and the body of a guitar, providing speed and punch that a heavy subwoofer cannot provide alone.
3/4" SATORI RING RADIATOR
Handling the delicate harmonics above 3900 Hz, the Satori Ring Radiator eliminates the harsh breakup modes found in standard dome tweeters. By taking over only the highest frequencies, it remains completely unstressed, delivering air and spatial detail that sounds sweet and natural - never harsh.
THE CABINET
HIGH-END, HIGH-DENSITY DUAL CABINET
A three layer dual-cabinet design that separates the low frequencies from the delicate high frequencies.

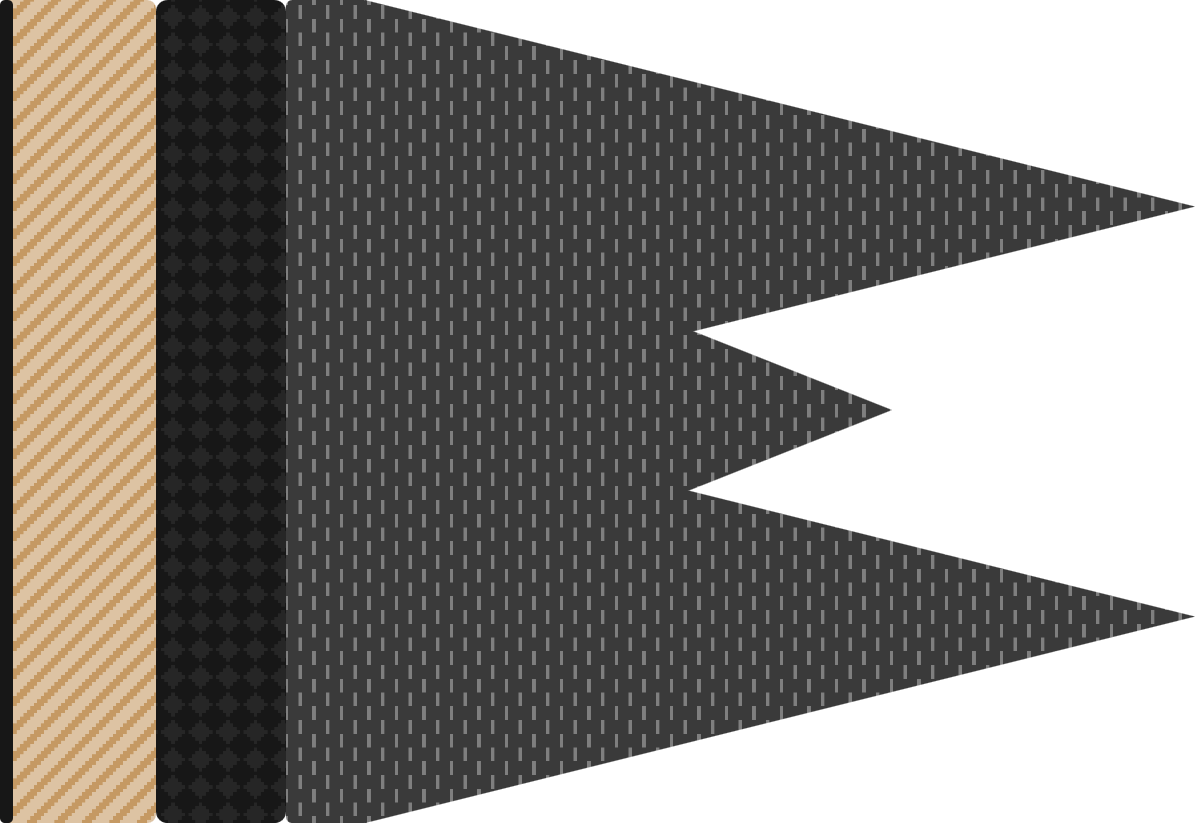

THREE LAYER CABINET
HIGH-END HIGH-MASS CABINET
A high-mass barrier composed of three layers that absorbs vibrations and resonances.
BEECH WOOD STRUCTURE
A premium beech wood core which provides superior structural rigidity and durability compared to standard MDF.
THICK, DENSE FOAM ABSORPTION
Thick foam wedges eliminate internal back-waves ensuring you hear only the pure sound of the drivers.
ADVANCED CABINET ENGINEERING

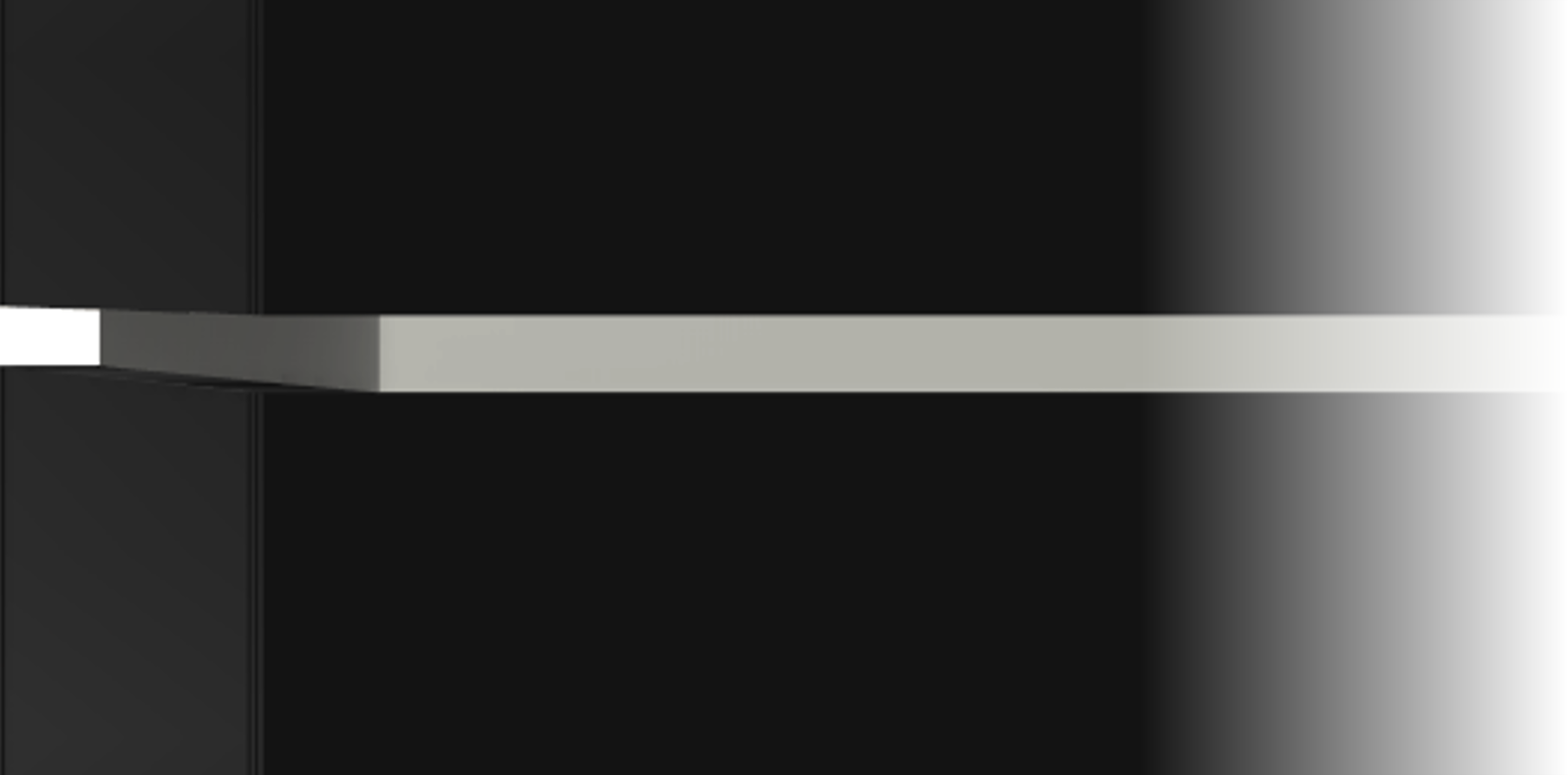

DUAL-CABINET DESIGN
The midrange driver and tweeter are housed in a separate top cabinet, isolated from the high-pressure bass cabinet, ensuring vocals and treble are never blurred by the power of the lowest frequencies.
NARROW FRONT BAFFLE
The slim front profile minimizes baffle diffraction, allowing the Luminaer to disappear in your room, creating a large soundstage that extends far beyond their size.
CUSTOM INTERNAL BRACING
Optimized internal bracing reinforces the cabinet at stress points ensuring rigidity, while also pushing cabinet resonances above the audible range, making sure the box remains acoustically silent.
FLOATING TWEETER
Luminaer's tweeter is decoupled from the wooden cabinet, floating entirely within a high-density, solid waveguide. This design absorbs driver recoil and prevents vibrations from affecting the high frequencies.
THE MODULARITY
A SYSTEM THAT CAN EXPAND
A speaker designed to adapt to your life, not the other way around. Luminaer is a scalable speaker, not just a tower.
THE HEAD-UNIT
THE HEART OF THE LUMINAER

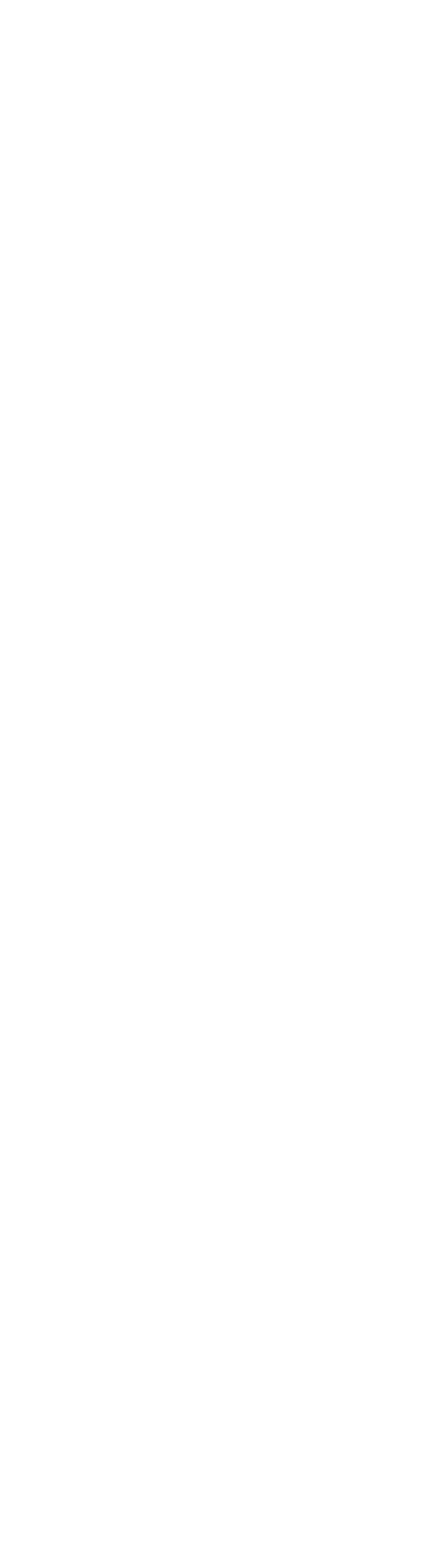

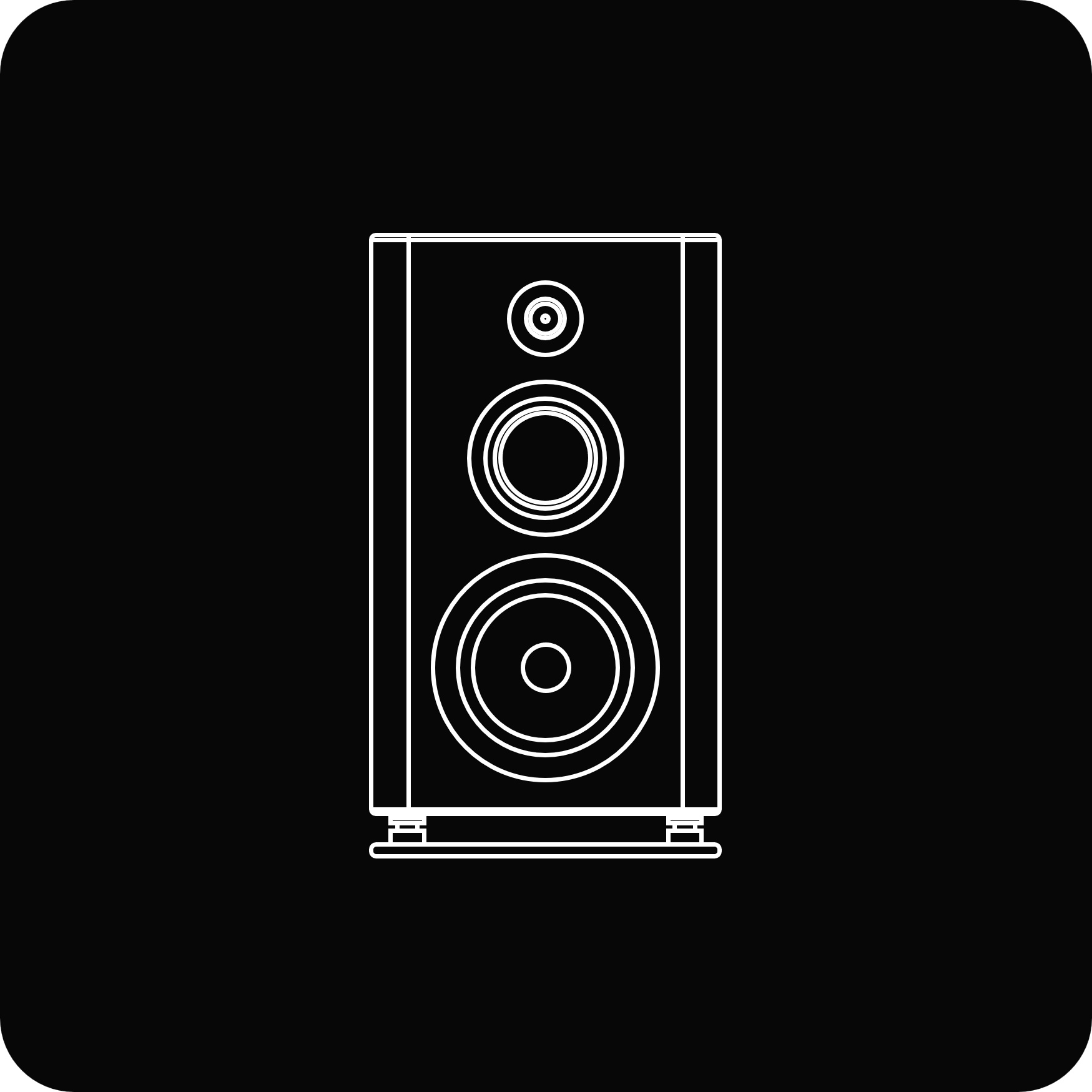

The midrange/tweeter head-unit is designed to function as a high-end standalone monitor. It houses the ring radiator tweeter and aluminum cone midrange in a vibration-free chamber. This means you can use the head-unit on its own as a premium bookshelf speaker for smaller rooms, or as a mounted satellite, without losing the signature qualities of the Luminaer.
FUTURE-PROOF INVESTMENT
High-end audio shouldn't be a dead end. Our modular system allows you to detach the head-unit from the bass compartment. This makes moving easier, allows for future upgrades, and ensures your investment retains its value and utility regardless of how your living space changes.
SEAMLESS SURROUND UPGRADE
BUILD YOUR DREAM AT YOUR OWN PACE

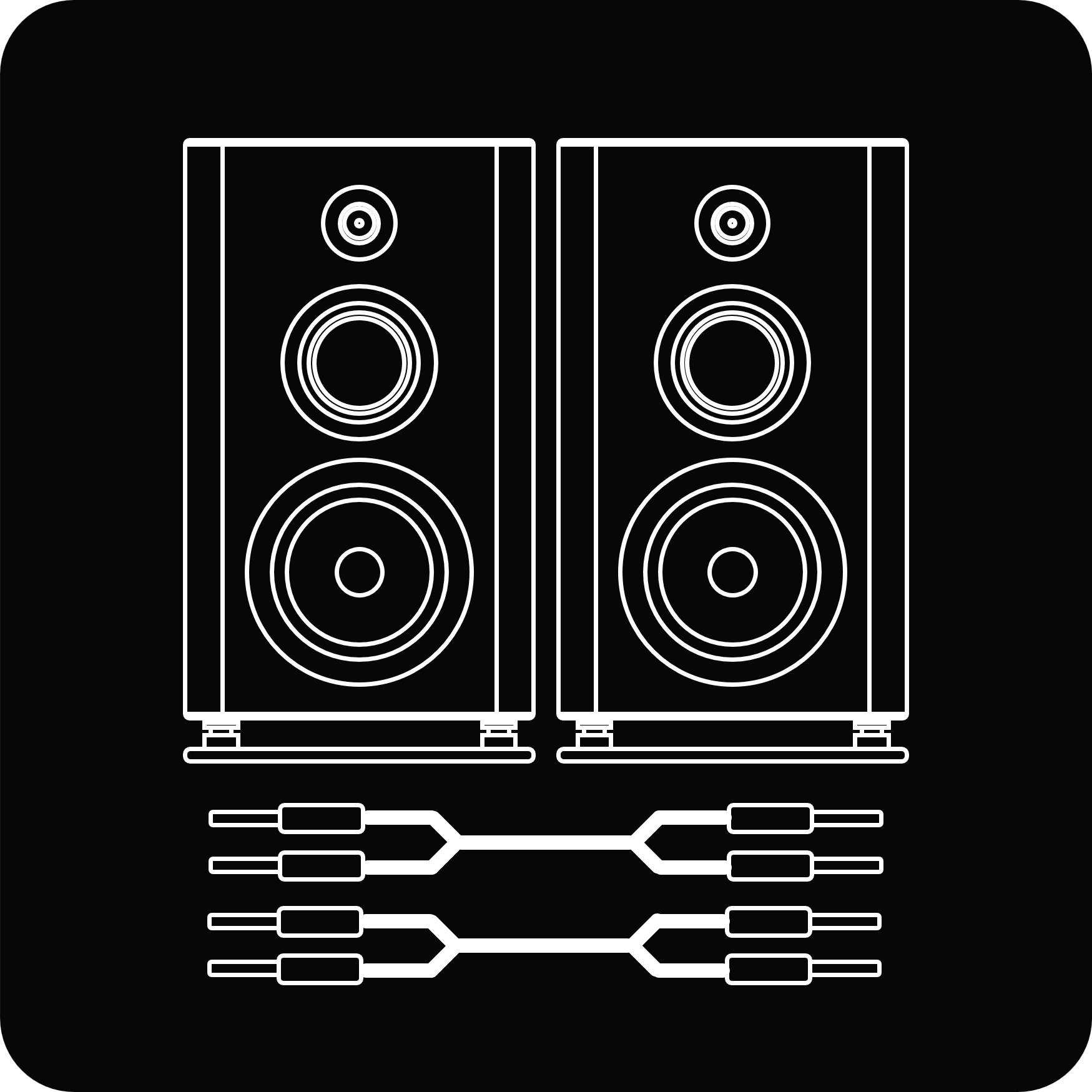

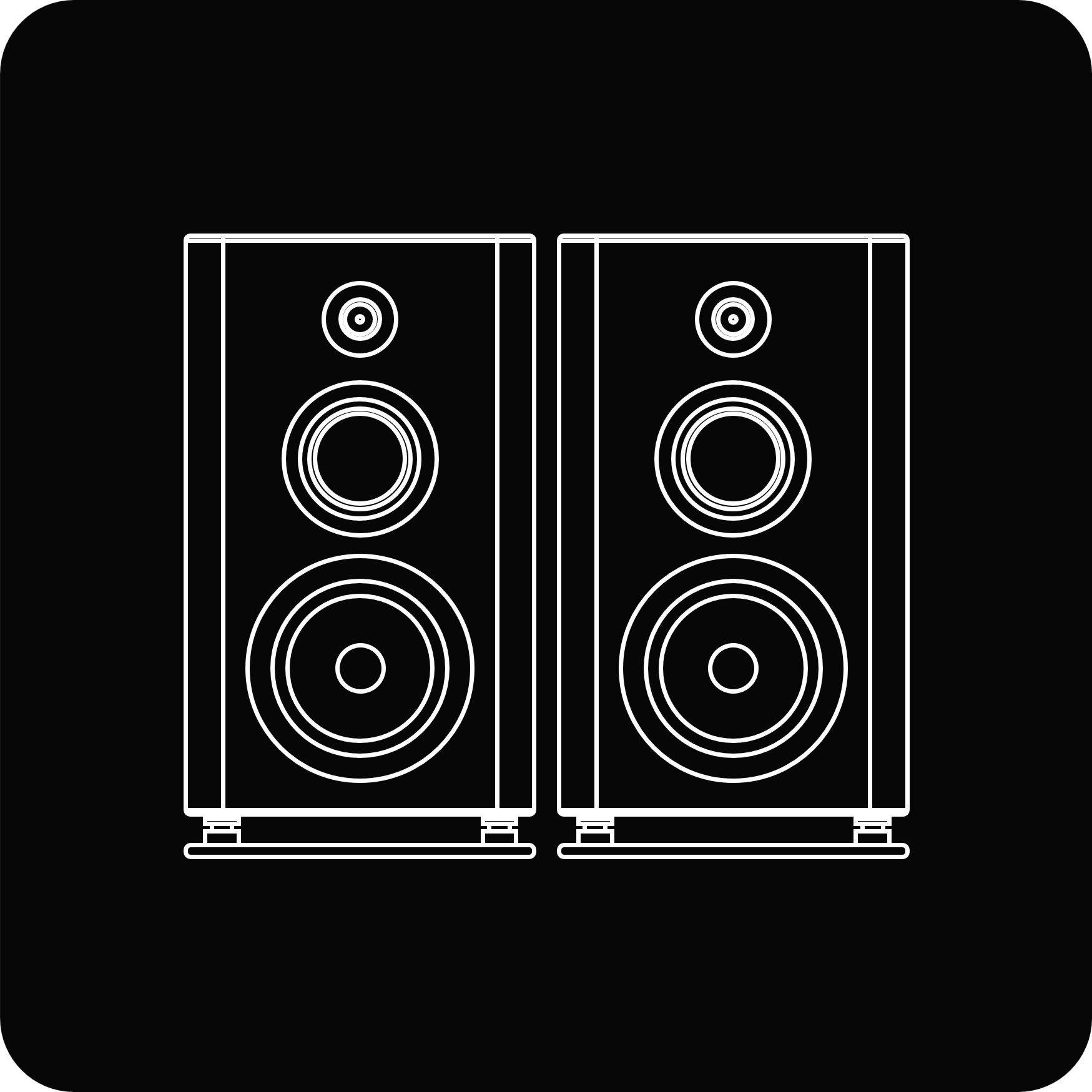

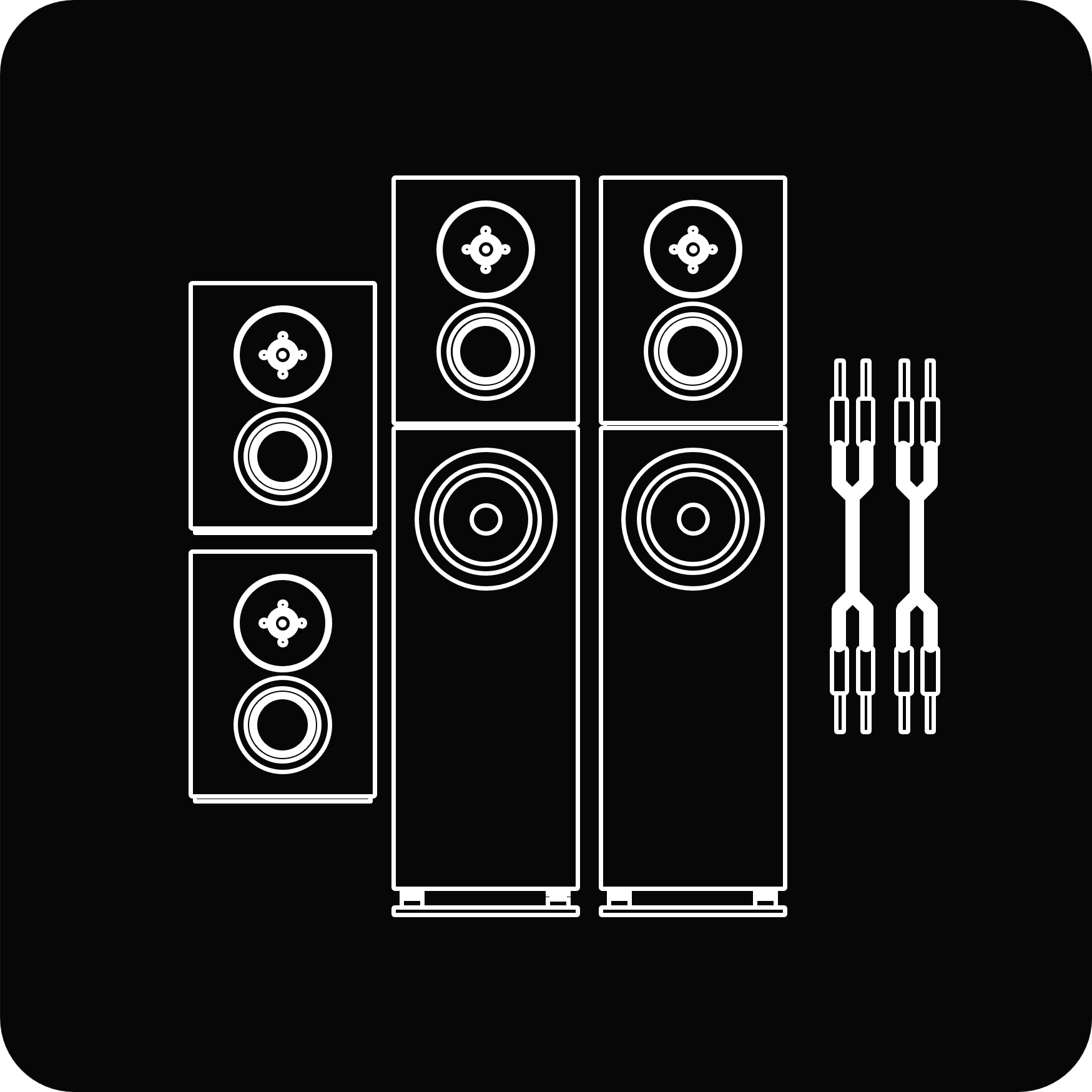

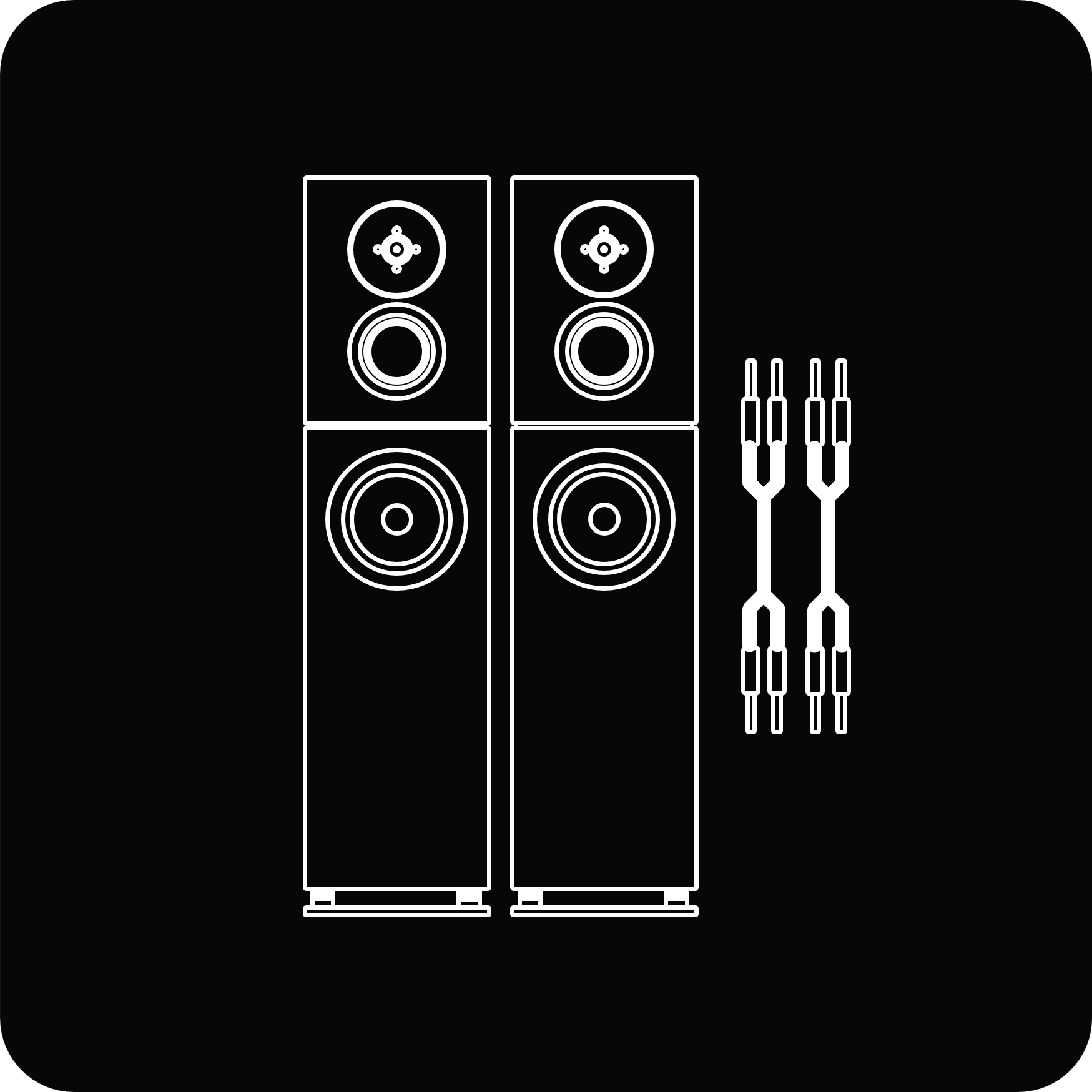

Start with a stereo pair of the full Luminaer towers for music. When you are ready for a home theater, you don't need to buy mismatched rear speakers. Simply add two standalone head-units for the rear channels. Because they share the exact same drivers and geometry as the front towers, effects pan from front to back with perfect tonal matching - something usually reserved only for professional studios.
SPECIFICATIONS
Type
Box principle
Crossover
(4-way) 95 / 450 / 3 900 Hz
Frequency range
Dimensions
Weight
Rated impedance
Sensitivity
Tweeter
Midrange Woofer
Woofer
Subwoofer

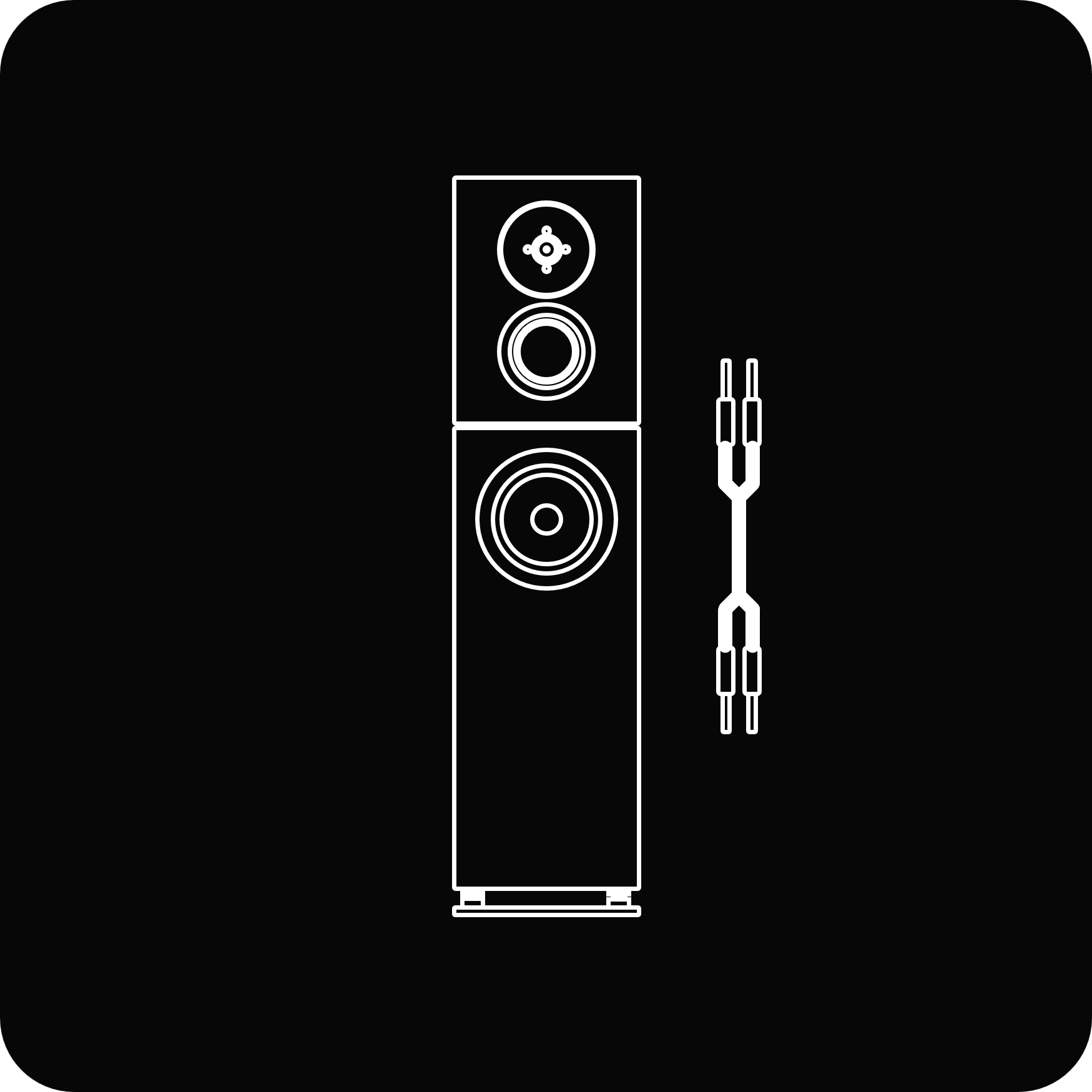

Included in box
Warranty
Warning
System input power
PRE-ORDER
The expected release is Q1 2026. Pre-orders will go into production right after the official release.
